VE 108 TC
8" Full Range Ceiling Speaker
Product at a Glance

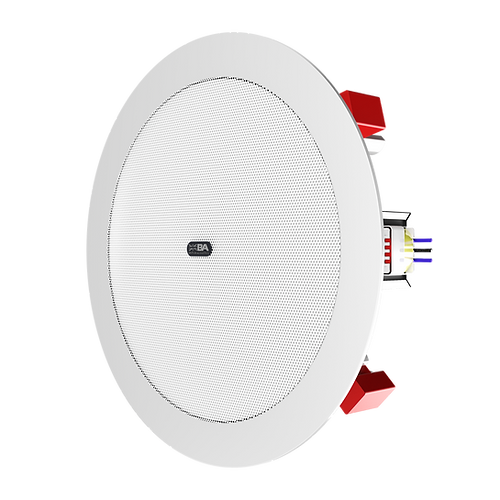

The British Acoustics VE-108 TC is an 8" full-range ceiling speaker designed for background music and paging in retail stores, transport hubs, and cafeterias. With 88 Hz–20 kHz response and 20W continuous (80W peak) handling, it delivers wide 90° conical dispersion for even coverage. Its shallow 8" driver with a 1" voice coil uses treated paper cones for durability, housed in an impact-resistant ABS body with a white matte grille. The VE-108 TC supports 8Ω and 70/100V operation via a fixed 20W transformer tap. The Quad-Fit Ceiling Lock system ensures fast, secure installation in commercial ceiling spaces.
CRAFTSMANSHIP
Painstakingly Perfect Production
Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 88 Hz - 20 kHz
• Freq. Range (-10 dB) : 50 Hz - 16 kHz
• Rated Power : 120W AES, 80W Peak
• Dispersion : 90° conical
• Nominal Impedance : 8 Ω
• Max Output : 111 dB
• Fixed 20W Transformer Tap
SYSTEM SPECIFICATIONS
• Recommended System Control : Can be used
without DSP or with the PW-Six DSP for
voicing & tonal benefits
• Recommended Subwoofers : See Systems
chart for compitable subwoofer
• Recommended Amplifiers : See Amplifier
load calculation chart
LF TRANSDUCER
• 8" Full Range Shallow Driver
• 20W AES, 80W Peak
• 1" Voice Coil - Ferrite Magnet
• Durable & Sturdy Build for long lasting
performance
• Treated Paper Cones for better resistance
against dust, moisture or UV exposure
HOUSING
• Impact Resistant ABS with UV Stabilisers
• Bare Body, Ideal for shallow commercial
ceilings
• White Grills & matte white rims
• Quad-Fit Ceiling Lock
IP SPECIFICATIONS
• Standard Version : IP 42 - Offers basic
protection against dust & splashes
OPERATING
PARAMETERS
• Operating Positions : Must be Flush
Mounted as per the manual
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -20° C (-4° F)
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 94 x 172 x 172 mm (H x W x D)
• Product : 3.7 x 6.8 x 6.8 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 1.8 Kgs
• Net : 3.97 Lbs
SHIPPING INFORMATION
• Carton Size
169 x 247 x 247 inch (H x W x D)
6.65 x 9.7 x 9.7 mm (H x W x D)
• Gross Weight : 1.89 Kgs / 4.2 Lbs
• Packed : Individually
