Delta Mix 48
48 Channel Digital Mixing Desk
Product at a Glance
The British Acoustics Delta Mix 48 is a 48-frame digital mixing console designed for live performances, studio sessions, and fixed installations. Compact yet powerful, it offers versatile input options, dual onboard effects, USB multi-track playback, and optional Dante integration for seamless digital workflows. Its intuitive layout enables smooth operation for audio engineers and musicians alike. Built with a rugged chassis, it’s suitable for touring and mobile use, while offering multiple output options and reliable connectivity. Whether used in venues or production setups, the Delta Mix 48 combines high-quality sound, ease of use, and professional control in a streamlined format.
CRAFTSMANSHIP
Painstakingly Perfect Production
Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.
TECHNICAL SPECIFICATIONS
INPUT CHANNELS
• Total 48 Input Channels
• On Board : 32 Mic/Line Input Channels (8 Combo Jacks)
• 1 Stereo USB Playback Channel
• Media Playback Channel with USB-C / BT Options
OUTPUT CHANNELS
• 14 Aux Output Channels
• 4 FX Channels
• Master L/R Output
• USB Output for Multitrack Recording
SIGNAL PROCESSING
• Analogue Gain
• Phase Inversion
• Delay (0 to 1000 ms)
• Gate
• HPF / LPF
• 5 Band (Inputs) & 6 Band (Outputs) Parametric EQ
• 6 x 31 Band Graphic EQ
• All-Pass Filter
• Compressor
• RTA Real-Time Spectrum Analyser with Freeze
• 8 x DCA Groups / 6 x Mute Groups
• Channel Mute
• Channel Direct Outputs
FRAME SURFACE
• 13 x 100mm, Motorized Faders
• 1 x 15.6" Touch Screen
• 2 x USB-A Slots
• 15 x Customisable Function Keys

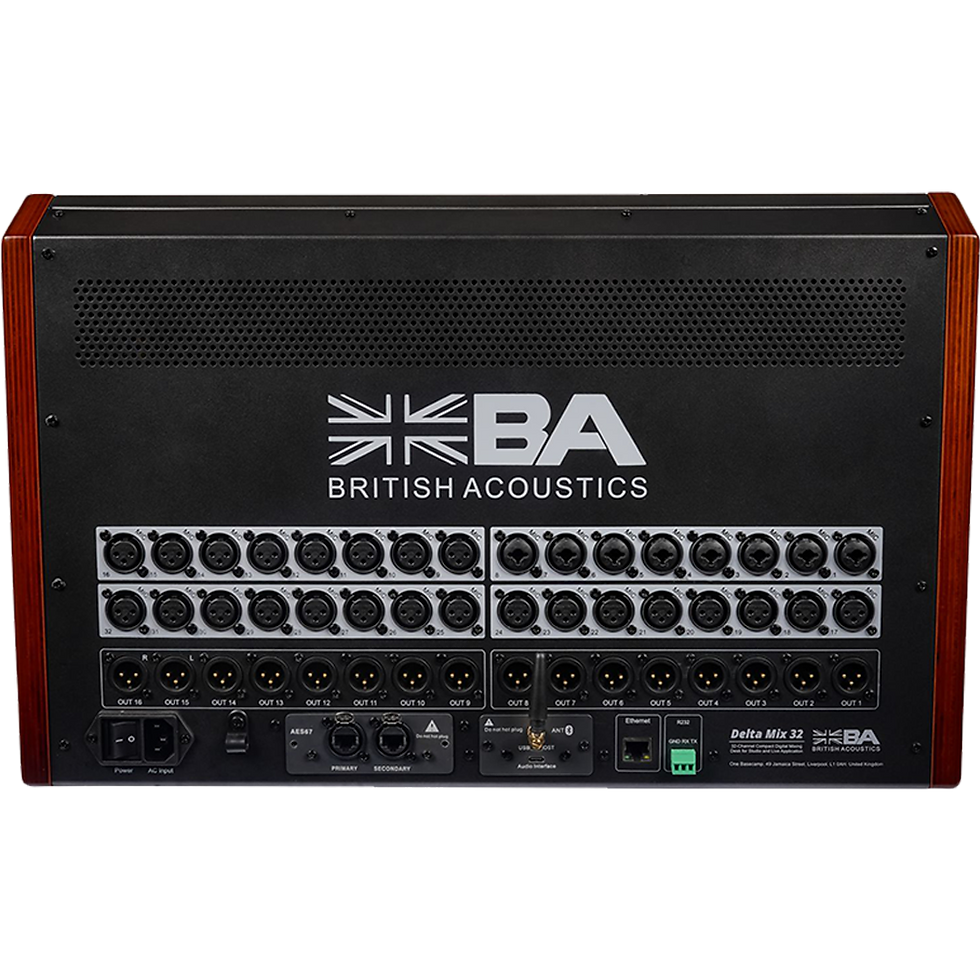

REAR
• 1 x PSU
• 32 x XLR Mic/Line Inputs (including 8 Combo Jacks)
• 16 x XLR Line Outputs
• 1 x USB-C Audio IO for 2×2 Recording & Playback
• 1 x Ethernet Port
• 1 x TRS Headphone Socket
• Optional Bluetooth Module
FX
• 4 FX Buses
• 14 FX Selection
• FX Library includes Echo, Reverb, Delay, Flanger, Hall Reverb, Room Reverb, Delay Reverb, Overdiver, Phaser, Pitch Shift, Tremolo, Limiter, Distortion & Chorus
SCENE MANAGEMENT
• Save, Load, Import & Export Scenes
• Up to 100 Scenes
• Up to 100 FX Presets
• Built-in Preset Libraries (Gate, Compressor, EQ, GEQ & Effects)
CONNECTIVITY
• LAN & USB WiFi
• Web-Based Software Control
• Multi-Device Access
PROCESSING SPECIFICATIONS
• Frequency Response - 20 Hz - 20 kHz (+/- 0.5 dB)
• THD 0.003%, Gain = 0 dB, Output = 0 dBu, un-weighted
• SNR : 113 dB (Gain = 0 dB, A-weighted)
• Channel Separation : 115 dBu
• 48 kHz Sample Rate
• 192 kHz ADC & DAC
• 24-bit : AD-DA Converter Bit Depth
• A/D Dynamic Range : 115 dB
• D/A Dynamic Range : 129 dB
• +22 dBu Max Input / Output Level
OPERATING SPECIFICATIONS
• Meant to be used as a table mount device directly or within a flight case.
• Maximum permitted ambient temperature (Ta max) 40° C (104° F)
• Minimum permitted ambient temperature (Ta min): -10° C (14° F)
SIZE
• Product: 309 x 630 x 525 mm (H x W x D)
• Product: 12.2 x 24.8 x 20.7 inch (H x W x D)
• Packed individually
WEIGHT
• Net Kgs - 14.86
• Net Lbs - 32.76
SHIPPING INFORMATION
• Carton Size 460 x 770 x 755 mm (H x W x D) 18.1 x 30.3 x 29.7 inch (H x W x D)
• Gross Weight : 16.86 Kgs / 37.17 Lbs
• Packed individually
