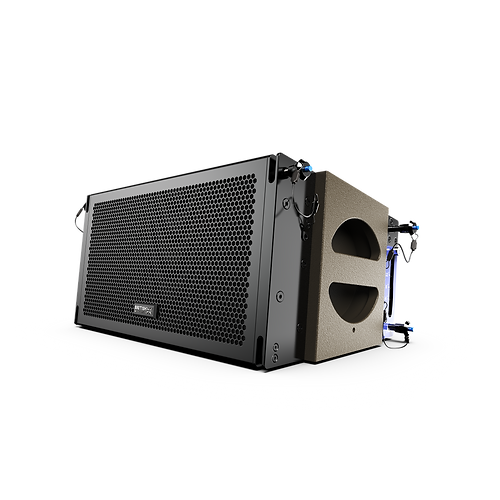

Delta 908 LA

8” Compact Line Array

Product at a Glance

The British Acoustics Delta 908 LA is a compact and versatile 8" line array system, designed for small to mid-size applications where portability and high performance are essential. Its sleek design and powerful output make it ideal for event setups, mobile applications, and intimate venues requiring professional-grade audio. Despite its small size, the Delta 908 LA delivers more power in a compact form, achieving exceptional SPL and clarity. The ability to deploy as a vertical array adds to its flexibility, allowing precise coverage tailored to the acoustic needs of each venue.

Engineered for portability, the Delta 908 LA is lightweight and easy to transport, making it well-suited for mobile setups and quick installations. Its robust construction ensures reliability and durability, even in demanding environments. With its compact size, vertical array capability, and impressive output, the Delta 908 LA is a powerful solution for professionals seeking high-quality sound reinforcement in a small, portable package.

CRAFTSMANSHIP

Painstakingly Perfect Production

Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.

TECHNICAL SPECIFICATIONS

ACOUSTICAL SPECIFICATIONS

• Freq. Response (-3 dB) : 74 Hz -20 kHz
• Freq. Range (-10 dB) : 98 Hz - 20 kHz
• Rated Power : 250W AES, 1000W Peak
• H Dispersion : 100°
• V Dispersion : 20°, array dependent
• Nominal Impedance : LF/FR - 8 Ω , HF - 8 Ω
• Crossover : 2.0 kHz Passive or Bi-amplified
• Max Output : Cont.- 124dB, 130dB Peak
• 2 x Speak-on terminals, Input & Thru
• Passive / Bi-amp selection switch

SYSTEM SPECIFICATIONS

• Recommended Subwoofers : See Systems Chart for compatible subwoofers
• Recommended System Control : Delta 48 ,
Delta 98 FIR , PW 6
• See amplifier load calculation chart

LF TRANSDUCER

• 825F - 8” Low Frequency Driver
• 200W AES, 800W Peak
• 2” Inside-out wound voice coil
• Enhanced Airflow Path for minimal power
compression
• Aluminum Demodulation Ring for reduced
distortion

HF TRANSDUCER

• 17HF - 1” exit high frequency driver
• 50W AES, 200W Peak
• 1.75” Voice Coil - Ferrite Magnet
• Precise waveguide maintaining horizontal
dispersion upto 18 kHz

HOUSING

• Marine Birchply Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• 4-Point Easy-Fly™ Rigging Mechanism
• 0-10° Splay Angles
• Tethered Quick-lock Pin Max. of 16 units in
one hang with the Acc 908 AF

AESTHETIC SPECIFICATIONS

• British Acoustics Signature Umber Brown
Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24
nos, minimum)

OPERATING PARAMETERS

• Operating positions : Flown or
Ground stacked with the correct Array
Frame or Accessory
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -9° C (15.8° F)
