OctaLine 12 LA
12" Self-Powered, Constant Curvate Array
Product at a Glance

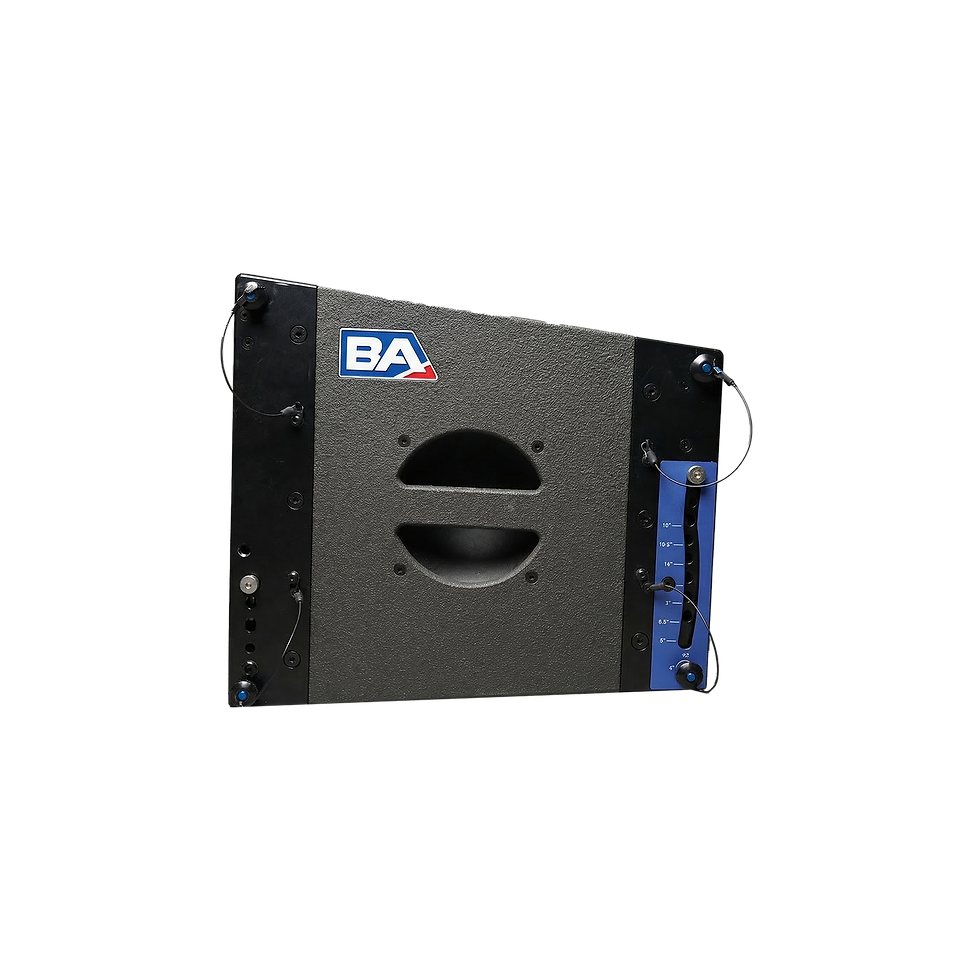

The British Acoustics OctaLine 12 LA is a 12" powered constant curvature array speaker engineered for consistent coverage and exceptional clarity in professional audio setups. With precise horizontal dispersion and array-based vertical pattern, it delivers balanced sound across venues. A 3000W Class-H amplifier and 24-bit DSP ensure efficient performance and protection. Housed in marine-grade birch plywood with polyurea coating, it features quick-lock rigging for easy deployment. Up to six units can be flown or stacked without an array frame. Finished with matte black grills and a signature brown tone, the OctaLine 12 LA excels in touring, installs, and live events.
CRAFTSMANSHIP
Painstakingly Perfect Production
Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.
TECHNICAL SPECIFICATIONS
ACOUSTICAL
SPECIFICATIONS
• Freq. Response (-3 dB) : 70 Hz - 20 kHz
• Freq. Range (-10 dB) : 55 Hz - 20 kHz
• H Dispersion : 100° (- 6 dB)
• V Dispersion : 20”, array dependent
• Crossover : 1.4 kHz Active
• Max Output : 130 dB, 136 dB Peak
SYSTEM SPECIFICATIONS
• Recommended Subwoofers : See Systems
Chart for compatible subwoofers
• Recommended System Control : Delta 98
FIR, Delta 48, PW 6 or built-in control for
smaller set-ups
LF TRANSDUCER
• 12CT75 - 12" Low frequency driver
• 750W AES, 3000W Peak
• 3" Voice Coil - Ferrite Magnet
• Compliant & Controlled spectre-spider
• Enhanced ventilation due to optimized heat
paths
HF TRANSDUCER
• A14CT75 - 1.4” Exit HF Compression Driver
• 50W AES, 200W Peak
• 3” Voice Coil - Ferrite Magnet
• Precise waveguide maintaining horizontal
dispersion upto 18 kHz
AMPLIFIER & DSP
SPECIFICATIONS
• 3000W - Two Channel Class-H Amplifier
• M1 Power Factor Crossover Module
• Enhanced Amplifier efficiency
• 3-Stage System protection process
• 24-Bit Built-In DSP for Superior voicing
• On-Board 2 Channel mixer Bluetooth
• 2 x TRS Jack mic input, 1 x XLR line input,
1 x XLR line output & 1 x Bluetooth input
• 2 x 16A PowerCon Connectors, Input & Thru
HOUSING
• Marine Birchply Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• 2-Point Steady Rig System
• Constant Curvature
• Tethered Quick-lock Pins
• Can be flown or stacked over the OctaLine
84FS without the need of an array frame
• Max. of 6 units in one hang with the
Acc 82 AF
OPERATING PARAMETERS
• Operating positions: Flown or
Ground stacked with the correct Array
Frame or Accessory
• Maximum permitted ambient temperature
(Ta max) 40° C (104° F)
• Minimum permitted ambient temperature
(Ta min): 4° C (39.2° F)
IP SPECIFICATIONS
• IP 43 - Standard protection against dust & splashes
AESTHETIC
SPECIFICATIONS
• British Acoustics Signature Umber Brown
Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24
nos, minimum)
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 431x 749 x 450 mm (H x W x D)
• Product : 17 x 29.5 x 17.75 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 42.6 Kgs
• Net : 93.91 Lbs
SHIPPING INFORMATION
• Carton Size
489 x 621 x 633 mm (H x W x D)
19.25 x 24.4 x 25 inch (H x W x D)
• Gross Weight - 30.45 Kgs / 67.17 Lbs
• Packed : Individually
