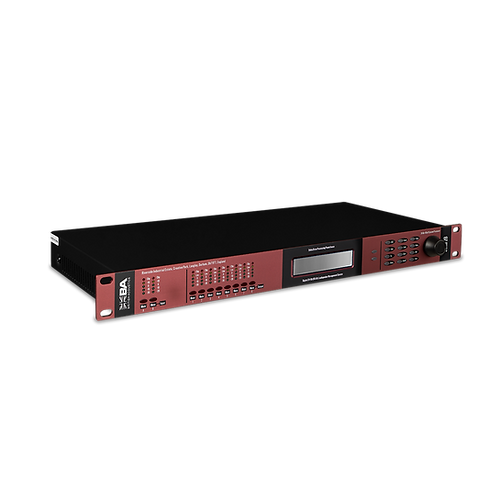

Delta 28

2-in 8-out Loudspeaker Processor, Matrix & Controller.
bg copy.jpg

Product at a Glance

The Delta Drive DSP Series is a cutting-edge line of professional audio processors designed to deliver unparalleled performance and versatility. With three models to choose from, namely the Delta 88, Delta 48, and Delta 28, this series caters to a wide range of audio processing needs while maintaining exceptional quality and precision.

For those seeking a compact yet powerful audio processor, the Delta 28 fits the bill perfectly. With 2 input channels and 8 output channels, this model is designed to provide maximum functionality in a minimal footprint. Whether you're a solo performer, a small venue operator, or a content creator, the Delta 28 empowers you to optimise your audio with ease.

All models in the Delta Drive DSP Series are equipped with a state-of-the-art 32-bit Floating Point DSP, ensuring pristine signal processing with exceptional accuracy and dynamic range. With 200 milliseconds of delay capability, you have precise control over time alignment and phase adjustments for seamless audio integration.

These processors feature advanced parametric filters, offering six filters per input and output channel. This allows you to sculpt the audio with precision, fine-tuning the frequency response to match your exact requirements. Additionally, each output channel is equipped with a compressor and limiter, ensuring optimal signal control and protection.

Operating at a sampling frequency of 96kHz, the Delta Drive DSP Series delivers crystal-clear audio reproduction with remarkable fidelity. The crossover slopes of up to 48dB/octave enable seamless frequency separation, allowing you to tailor the sound to suit any venue or application. To further enhance your audio experience, the Delta Drive DSP Series incorporates 1st and 2nd order All Pass Filters. These filters can be utilised for phase correction or creative sound manipulation, giving you even more control over your audio signals.

Last but not least, the Delta Drive DSP Series introduces dynamic EQ on the inputs. This innovative feature enables you to dynamically adjust the equalization based on the input signal, allowing for precise shaping of the frequency response in real-time. In summary, the Delta Drive DSP Series represents the pinnacle of audio processing technology. With its comprehensive feature set, uncompromising quality, and exceptional performance, these processors are the perfect choice for professionals seeking a reliable and flexible solution to elevate their audio productions.

CRAFTSMANSHIP

Painstakingly Perfect Production

Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.

Tech Specs

TECHNICAL SPECIFICATIONS

ACOUSTIC

Audio Input

2 x Balanced XLR

Audio output

8 x Balanced XLR

Minimum Load

150 Ohms

THD+N

0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain

Sound to Noise Ratio

>110dB

Datasheet

AESTHETIC

Frequency Response

20 Hz - 20 kHz, +0 /- 0.5 dB

AD & DA Converters

48 Bit

Enclosure

Aluminium Extrusion with Steel Holding Assembly

LED Screen

3.5" TFT Display

Parametric EQ

6 filters per input selected as Bell or Shelving
6 filters per output selected as Bell or Shelving

Centre Frequency

Selectable with a 1/48th of octave resolution step from 20Hz up to 20kHz

Finish

Glossy Eroded Pink Brushed Steel Finish

Mounting System

19" Standard Rack Mount Ears

DIMENSIONS

Height

1.75" (1 RU)

Width

19"

Depth

9"

Weight

3.7 Kgs
