White Room

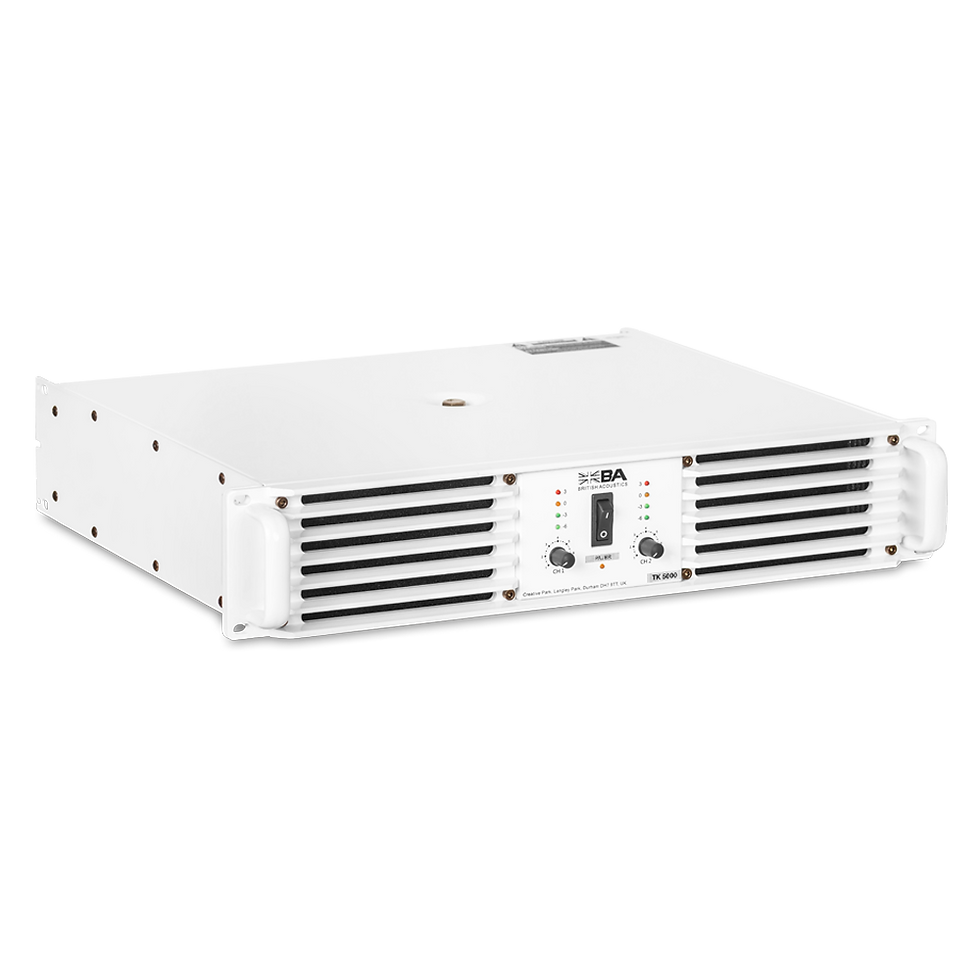

TK 5000

2 Channel, Audio Power Amplifier for Touring
Wall

Product at a Glance

High power amplification for touring , commercial & residential application - Built-in High-Pass filter with selectable frequency cut-off. - Efficient cooling system with multi-step heat protection. - Selectable gain plus scalable voltage Peak limiter to allow custom configuration as per application requirements - Individual gain control - Detachable handles to transform between install & touring applications"

CRAFTSMANSHIP

Painstakingly Perfect Production

Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.

TECHNICAL SPECIFICATIONS

ACOUSTIC

No. of Channels

2

Power at 4 Ohms (Stereo Mode, All channels driven)

Dampning Factor

> 300 at 8ohms

Signal to Noise Ratio (1 kHz, 8 Ohms)

1150W

Power at 8 Ohms (Stereo Mode, All channels driven)

- 100 dB

THD

700W

Bridged Power at 8 Ohms

1300W

< 0.02% THD / 4ohms and 8 ohms

Controls

Sensitivity Selection - High Pass Cut Off - Stereo, Bridge, Parallel Switch"

Bridged Power at 4 Ohms

2900W

AESTHETIC

Enclosure

Tour Grade Rugged Aluminum Chasis

Knobs

Controlled Increment ABS Knobs

Finish

Metallic Matte Finish - Ivory White

Mounting System

19" Standard Rack Mount Ears

DIMENSIONS

5.25" (3 RU)

Weight

21.4 Kgs

Depth

17.5"

Width

19"

Height
