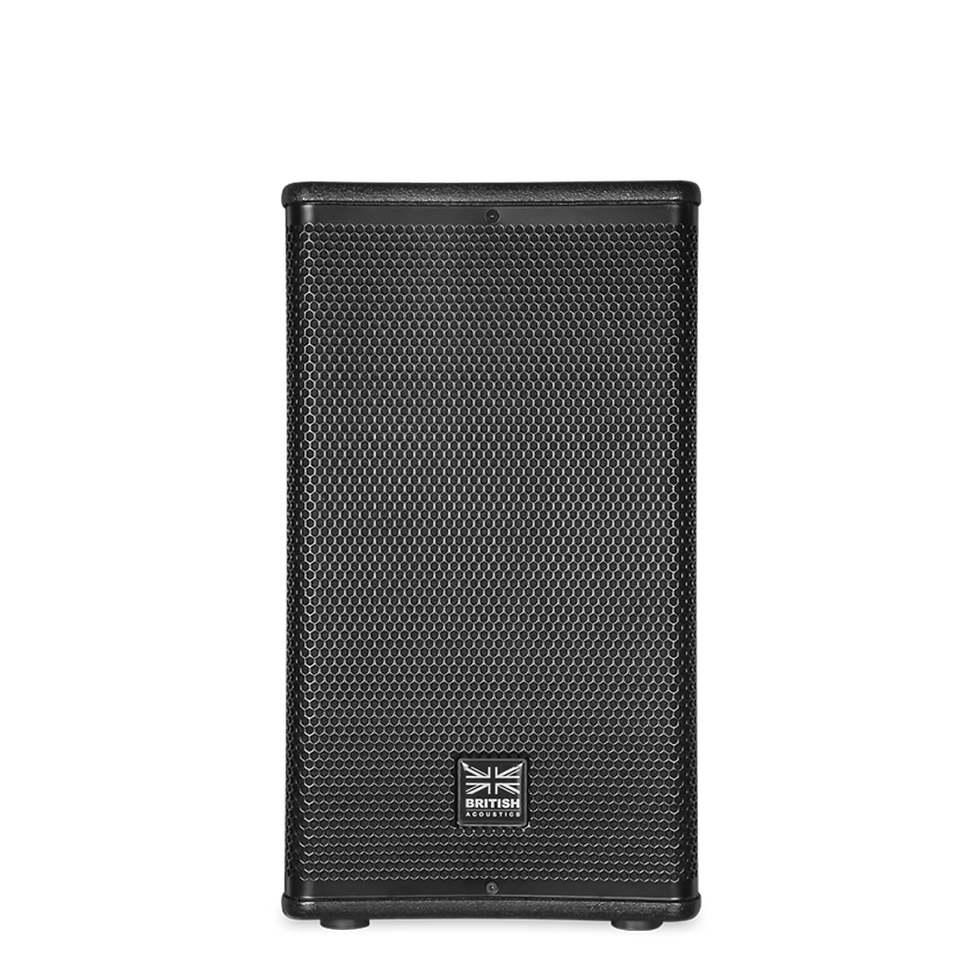

PW610
Passive Single 10" Multipurpose Speaker
Product at a Glance
The PW610 from British Acoustics' 6 Series is a passive single 10" multipurpose speaker with a frequency response of 68 Hz to 20 kHz (-3 dB) and a maximum SPL of 126 dB. It handles 300W continuous power (1200W peak) and operates at 8 ohms impedance with a sensitivity of 95 dB. The speaker features a 10" LF driver with a 2.5" voice coil and a 1" exit compression HF driver with a 2" voice coil, crossed over at 1.9 kHz. It has a coverage pattern of 90° x 90°. The PW610 is housed in a birch plywood enclosure with a powder-coated grill and includes integrated handles, M-10 insertion points, and a pole mounting socket for versatile mounting options.
CRAFTSMANSHIP
Painstakingly Perfect Production
Over the years, craftsmanship has been closely linked with small scale individualistic production. Back in 1972, we started the same way. As we grew in scale & size, it was difficult to build each speaker individually, but quality control was of utmost importance as so switching to a general assembly line was simply not an option. So we wrote up a code, one quite like enigma, to ensure quality control. We selected the right partners, got the right tools, and in cases where those weren't available, we invented them. We grew slower than most as our aim was to last longer than most.
TECHNICAL SPECIFICATIONS
ACOUSTIC
Frequency Response (-3 dB)
68 Hz - 20kHz
Frequency Range (-10 dB)
Nominal Impedance
8 ohms
Coverage Pattern
50 Hz - 20 kHz
Rated Power
90° x 90°
LF Driver
300W Continuous, 1200W Peak
Maximum SPL
126 dB
10" LF Driver, 2.5" VC - Ferrite
HF Driver
1" exit compression driver, 2" VC
Sensitivity
95 dB
AESTHETIC
Enclosure
Steadygrid Plywood
Grill
Powder-coated durable grill with acoustically transparent foam
Finish
British Acoustics' Signature Brown Finish
Mounting System
Integrated Handles - M-10 insertion points - Pole Mounting Socket
DIMENSIONS
19.3"
Weight
13 Kgs
Depth
13"
Width
13.2"
